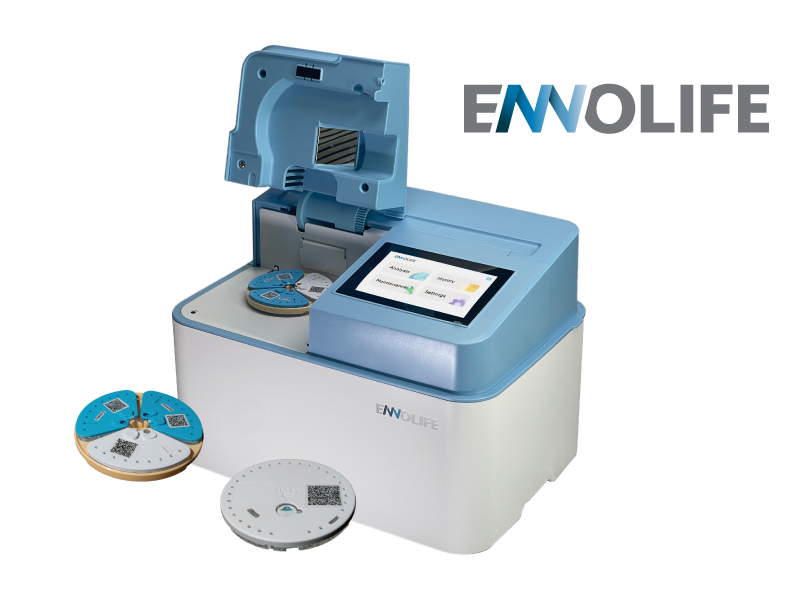

ENNOLIFE Clinical Chemistry Analyzer, a new-generation clinical analyzer developed by ProtectLife International Biomedical Inc., can measure multiple biochemistry tests and immuno-assays at a point-of-care-testing (POCT) environment. By using different reagent rotors / discs, professional users are able to run up to 17 comprehensive tests in one run in 20 minutes using as little as 0.14 mL (140 μL) of heparinized whole blood. The analyzer is nearly maintenance-free and easy to operate, able to deliver results in a real-time, convenient, and reliable manner. Applicable samples include lithium-heparinized whole blood or plasma, serum, and urine. Different reagent rotors / discs may require different sample types.
Download cloud_downloadThis product is specifically designed to meet the demands of accurate, rapid, and flexible clinical testing. It integrates high-performance hardware with advanced spectral technology to deliver fast and versatile diagnostic capabilities, helping medical institutions improve diagnostic efficiency and quality.
Equipped with a high-performance processor, the system enables rapid testing workflows, delivering results in under 20 minutes.
Just 60 or 140 μL of sample is needed to perform up to 17 tests in a single run.
Offers both large and small reagent trays to support customizable test combinations for specialized items, effectively reducing cost and time.
Equipped with a medical-grade full-spectrum spectrometer with high sensitivity, supporting rapid development of various new testing items.
Based on easy to use, small size, cost-effective advantages, ENNOLIFE also has a highly potential for future expansion to the counter- sales (over the counter, OTC) and general household use as an important tool for preventive medicine and personalized healthcare management. In addition, the aforementioned full spectrum module makes ENNOLIFE have a wide range of applications.
| Cat. No. | Product Name | Parameters | No. of Parameters |
Injection Volume (μL) |
|---|---|---|---|---|
| Clinical Testing | ||||
| 001-3H9C | Comprehensive II Panel | ALB, ALP, ALT, AMY, AST, BUN, CRE, GLU, IP, TBIL, TP, CA, GGT, GLOB, ALB/GLOB, BUN/CRE, eGFR | 13+4 | 140 |
| 001-3D2A | Screen Panel | ALB, ALT, AMY, AST, BUN, CRE, GLU, TP, GGT, GLOB, ALB/GLOB, BUN/CRE, eGFR | 9+4 | 140 |
| 001-3B2B | Liver Plus Panel | ALB, ALP, ALT, AMY, AST, GLU, TBIL, TP, GGT, GLOB, ALB/GLOB | 9+2 | 140 |
| 001-246F | Liver Panel | ALB, ALP, ALT, AST | 4 | 60 |
| 001-394A | Renal Plus Panel | ALB, BUN, CRE, GLU, IP, CA, UREA, BUN/CRE, eGFR | 6+3 | 140 |
| 001-246E | Kidney Panel | BUN, CRE, UA, BUN/CRE | 3+1 | 60 |
| 001-218A | HDL Cholesterol Kit | HDL-C | 1 | 60 |
| 001-236C | TC/TG/GLU Panel | TC, TG, GLU | 3 | 60 |
| 001-256D | ACR & UPCR Test for Urinalysis | mALB, UP, UCRE, UACR, UPCR | 3+2 | 60 |
| 001-218B | HbA1c Disc | HbA1c | 1 | 60 |
| Upcoming | ||||
| 001-218G | VIT-D Disc | Vitamin D | 1 | 60 |
| OPPs Pesticide Residues Detection | ||||
| 001-210A | Organophosphate and Carbamate pesticides | Tea Leaves & Vegetables | 1 | 60 |
| Cat. No. | HCA-TC-300 |
|---|---|
| Units | S.I. units, traditional units |
| Sample Type | Whole blood, Plasma, Serum, Urine |
| Sample Size | 0.06 mL (60 μL), 0.14 mL (140 μL) |
| Reagent Storage | 2 – 8 ℃ |
| Analyzing Time | 15 – 18 minutes |
| Ambient Temperature | 15 – 30 ℃ |
| Ambient Humidity | 20 – 80 %RH |
| Interface | USB 2.0, RS232, Ethernet |
| Power Supply | 110 – 220 Volts AC, 50 – 60 Hz |
| Weight | 7.5 kg |
| Dimensions | (L) 340mm x (W) 240mm x (H) 240mm |
| Measuring Principle | Absorbance, Spectroscopy |
| Testing Method | Patented microfluidic chip |
| Assay Principle | Biochemistry & Immunoassay |
| Light Source | Halogen lamp |
| Detector | Full-wave Spectrophotometer |
| Wavelength | 340 nm – 750 nm |
| Reagent Rotor | Up to 17 parameters / test |
| Reagent Disc | Up to 4 parameters / test |
